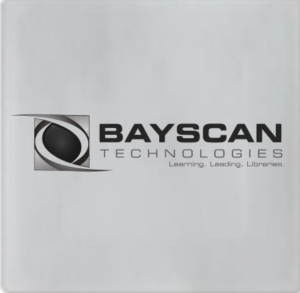

CD/DVD OVERLAY RFID Tags

$590.00

Categories: ,

Part #: BSTOVERLAY

CD/DVD OVERLAY RFID tags, must be ordered in full rolls of 1,000 tags.

Key features:

  • Best performing inlay for all disc types: CD, DVD and Blu-ray.
  • Maximal performance and robust readability for library and rental applications.
  • NXP ICode SLIX2
  • Easy application with strong adhesive properties
  • Self check multiread and Improved gate EAS

Materials:

Protective Tape: PET Clear

Adhesive: Acylic

Liner: Release paper

RFID Inlay:

  • Size (Final Cut-out): OD 116mm, ID 41mm
  • Thickness (Over IC): ~380 um
  • Thickness (Over Antenna): ~260 um

RFID Chip:

  • IC Code: NXP ICODE SLIX2
  • RF Protocol: ISO/IEC 15693
  • Thickness: ~ 120 um
  • Total Memory Size: 1024 Bits
  • User Memory Size: 896 Bits

Antenna Substrate:

  • Antenna Size: Ø 110 mm
  • Material: Alu etched on PET substrate
  • Cross over connection: Crimping process

Reliability:

  • Operating Temp: -20°C ~ 70°C (-4°F ~ 158°F), at <60%RH (according to and limited by chip specification)
  • Storage Life: 1 year under designated conditions
  • Thermal Cycle Test: 100 cycles uner -55 degrees Celcius/85 degrees Celcius, 15 mins dwell
  • Thermal Humidity Test: 168 hours under 85 degrees Celcius

Protocol:

  • ISO 15693
  • ISO 18000-3 Mode 1
  • Operating frequency: 13.56 MHz
  • Antenna size: 113 mm / 4.45 inch
Weight 7 lbs
